Needle Punching M/CCompany Name BOOKWANG TECH CO. Company Information Address (#459-1, Shinri) 85, 5 Gil, Sjindongro, Jicheon-myeon, Chilgok-gun, Gyeongsangbuk-do, Korea, Chilgok-gun, Kyungbuk TEL +82-54-974-3333 Category Automotive / Others Product Needle Punching M/C, Heating Roller M/C, Cross Lapper M/C Detailed Description

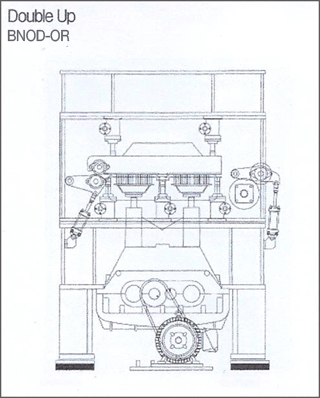

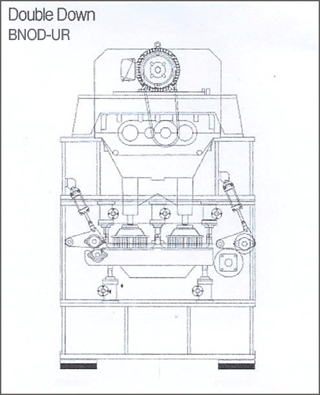

Two sets of machines mounted on one body frame to increase product density. Special material gears of main gear box induce low noise and high speed rotation. Two shafts rotate reverse direction to minimize vibration and high density production.

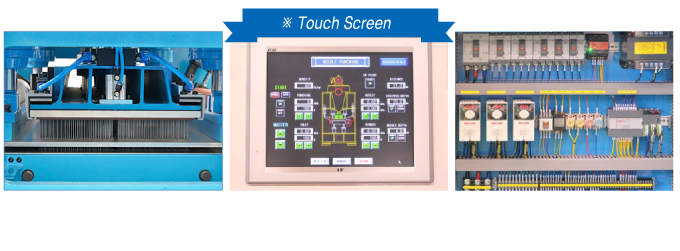

Control Box
Working width 2,800 ~ 4,500mm Stroke 30mm RPM 1,400 No of needles 12,000 / 15,000 EA/㎡ Electric power Inverter 30kw - 1Set, Inverter 1.5kw - 1Set, Inverter 0.75kw - 1Set
Motor 30kw - 1Set, G/M 1.5kw - 1Set, G/M 0.75kw - 2Set, G/M 0.75kw - 1Set

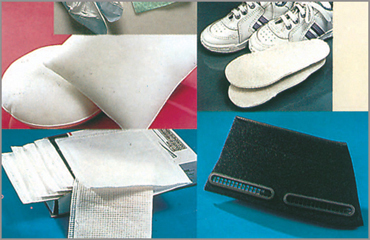

Oil Pump 0.75kw - 2Set, Oil Pump 0.2kw - 2Set (Standard specifications for 2800)Main product For geotextile, embedding materials for automobiles, clothes, carpets, padding, synthetic leather. ■ Specifications of this machine can be changed for quality improvement. View other Products of this company
